The Stertil T-Series Cushion Shelters are the best available option for loading bays where environmental control is important. The cushions are fixed on galvanized steel back plates and therefore suitable for use at locations with strict environmental requirements. Due to the wide range of truck dimensions and sectional doors, cushion shelters are in most cases tailor made for each customer.

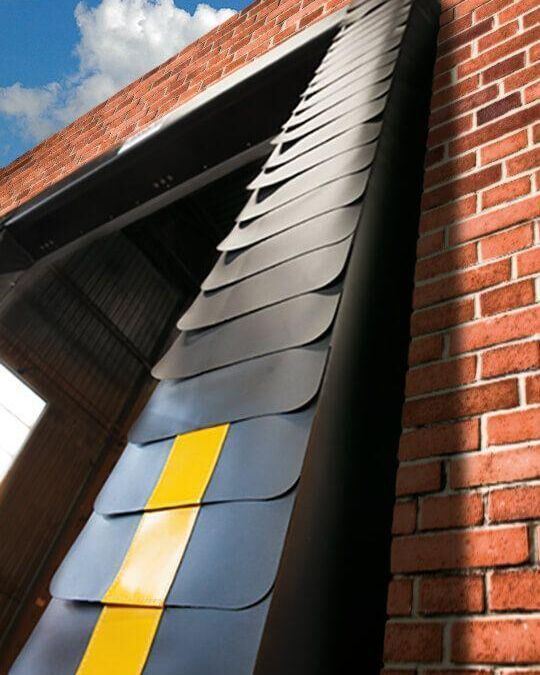

Download BrochureExtra durable and optimum damage & safety protection due to armoured sections on the front side of the cushions with yellow positioning markers.
The sustainability certifiacte from the Dutch Green building council is based on the excellent results for air infiltration and thermal insulation.
Our shelters are frequently used in BREEAM certified projects.
Stertil cushion dock shelters are made from top-quality materials.The combination of an aluminium frame and strong reinforced FOAM chushions results in a very effective structure that will last for decades.
For loading and unloading narrow vehicles there are optional bevelled cushions available for bridging the gap between the vehicle and door opening.
Is ideal when vehicles of the same width and height need to dock. The Cushion shelter provides a seamless fit and is a universal solution for a variety of vehicles. With the bevelled option an even wider range of narrow vehicles can dock with a proper seal.
When vehicles of varying heights need to dock, the TI shelter with inflatable top cushion and a maximum reach of 1350 mm is the perfect solution. For extra durability and long life, the inflatable top cushion is made from wear-resistant cordura material.
The TP-Series can be installed with the standard PVC curtains or with the optional POWERFLEX Curtains. POWERFLEX ensures a long life span and high wear resistance. In applications such as sea containers, extra POWERFLEX reinforcements on the contact surfaces protect against wear.
| Standard Dimensions | TP-series | TI-Series |
| A. Overall Width | 2800mm to 3100 | 3500mm |
| B. Overall Height | 2600mm to 3200 | 3600mm |
| C. Height of top Cushion | 300mm | |
| D. Projection of top Cushion | 270mm | |
| E. Width of Side Cushion | 300mm | 300mm |
| F. Projection of Side cushions | 270mm | 270mm |
| G. Projection of top panel | 650mm | |
| H. Height of inflated top cushion | 1350mm |
The Stertil T-Series Cushion Shelters are the best available option for loading bays where environmental control is important. The cushions are fixed on galvanized steel back plates and therefore suitable for use at locations with strict environmental requirements.
