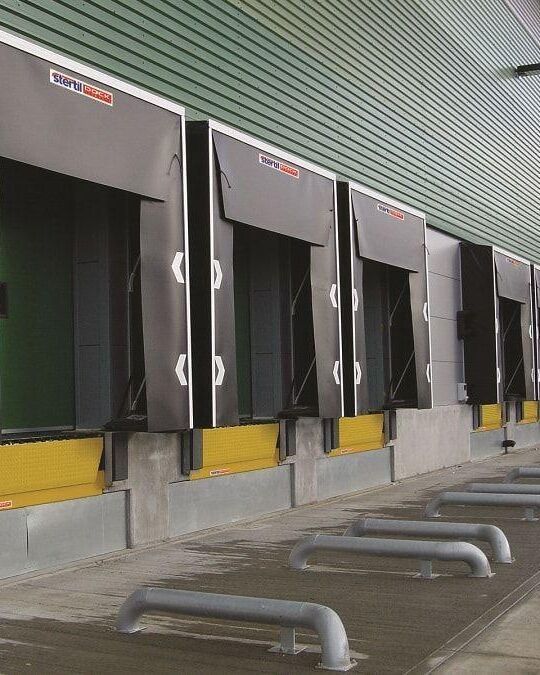

The S-Series dock leveller is equipped with an unique open lip hinge and enables an easy and smooth transition between the warehouse floor and truck. Thanks to the closed rear hinge, the 2 mm lip thickness is created by using a 80 mm long chamfer. During the loading and unloading process the leveller adjusts itself automatically to the changing floor height of the truck, even if the truck is loaded unevenly.
Download BrochureDuring the loading and unloading process the leveller adjusts itself automatically to the changing floor height of the truck, even if the truck is loaded unevenly. With dynamic capacities of 6, 8, 10.5 and 12 tons is the S-Series dock leveller extremely versatile. The dock leveller is available in many different sizes and is an excellent choice for almost every dock situation.
The unique hinged lip has big advantages, thanks to the open construction, accumulation of dirt is impossible. Furthermore, the construction is much stronger than a traditional piano hinge, therefore Stertil provides a lifetime warranty on the open lip hinge. The levellers which are wider than 2000 mm are equipped with a tapered lip for badly centered trucks.
In case of premature vehicle departure whereby the forklift truck is still on the dock leveller, the automatic panic-stop activates. The leveller in most cases remains in operation even after a panic-stop situation. The emergency stop button on the control box can also be operated manually
During maintenance, the dock leveller is held safely in position by means of a special maintenance strut. When the leveller is in parked position, it is automatically supported by two cross-traffic safety legs.
The dock leveller can be positioned perfectly using the three control buttons, and returned to the parked position using the standard auto park function.
There are several advanced control options which provide additional functions such as door control, shelter control, automated interlock to prevent operation when the dock door is not fully open, and automatic door closure locking until the leveller has been parked correctly.
The S-Series offers numerous possibilities customised to your dock for most efficient use. The length of the platform will primarily be determined by the height difference between the warehouse floor and the expected range of truck beds. Easy installation with the S-Series for both the base-supported frame (SP) in a closed pit, or the suspended frame (SF) in an open pit. Read more about the installation methods in our: How to design a loading bay.
|
Dynamic Capacity SF - SP 6 Tons, SFH - SPH 8 Tons |
||||||
| Lenght (mm) excl. Lip |
Working Range (mm) above dock |
Working range |
Frame height (mm) | |||
| 2000 | 240 | 315 | 585 | |||
| 2200 | 265 | 300 | 585 | |||
| 2500 | 305 | 310 | 585 | |||
| 2800 | 345 | 300 | 585 | |||
| 3000 | 350 | 305 | 585 | |||
| 3500 | 435 | 355 | 700 | |||
| 4000 | 445 | 340 | 700 | |||
| 4500 | 405 | 330 | 700 | |||
Platform widths (mm), 1750, 1830, 2000, 2110, 2250
* Calculated with a 350 mm lip, 7,5° lip angle and 100 mm bumper projection
F- Frame Installation, P= Pit Installation, H= Heavy-Duty. Long Life Span
The platform, beams and lip are made from high tensile steel (S355J0 / STEEL 52). Both the platform and the lip have a tear plate surface (8/10 mm and 13/15 mm respectively), making them suitable for 3-wheel forklift trucks. Pre-equipped with cables and cable tree between leveller and control box for a quick and fast installation.
Black Anti-Corrosion Coating and galvanised frame components to protect the dock leveller against all weather conditions. Standard protection is an anti-corrosive coating and paint finish of 80 micrometres total thickness. other colours are available upon request.
The construction is unique with, amongst others, one central cylinder at the front for maximum safety, a self cleaning open lip hinge and all levellers wider than 2000 mm come standard with a tapered lip.
Below Dock Control (BDC) is standard on all S-Series levellers. Automatic BDC is available and offers more convenience for end cargo loading and unloading. The S-Series is in accordance with the EN 1398 Directive. Extra safety thanks to the equipped hose burst valve aswell as an electrical emergency stop valve.
