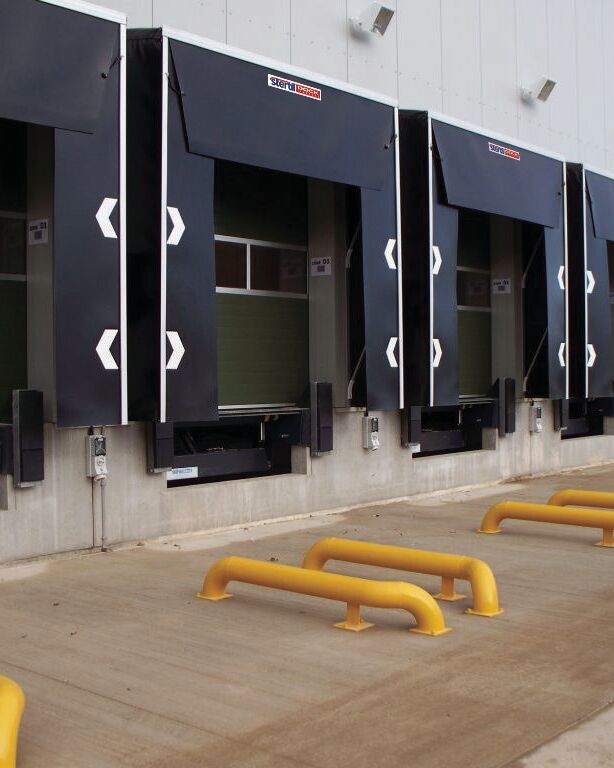

The Stertil Dock Products Curtain shelters provide optimal sealing on vehicles with various widths and heights which makes it the universal and flexible solution.
The W-Series curtain shelters can be 100% tailored to fit and meet all the requirements to seal any type of vehicle which makes the W-Series shelter the most versatile, reliable and effective shelters.
Stertil curtain dock shelters are made from top-quality materials.The combination of an aluminium frame and strong reinforced curtain materials results in a very effective structure that will last for decades.
With a drive-in depth of 400 to 500 mm, the top and side curtains automatically press against the truck. An effective wind protection system keeps the curtains in place even under extreme wind conditions.
The curtain shelter is available in four different models including the WL as the standard premium model with maximum versatility, WF model without side panels for use on recessed platforms, and the WSP model with a fixed frame.
The WL curtain shelter has many unique benefite to have the best possible seal. The collapsible aluminium frame prevents damage from incorrect docking of vehicles and can be fully customised. With excellent sealing with various vehicle sizes and optimal standard projection of 600 mm; 750 mm or 900 mm optionally available, every vehicle can dock at an WL curtain shelter. Other advantages are:
| WL | WF | WSP | ||
| Transparent curtain material on the projection section for more daylight and increased working safety |
• | |||
| PVC curtain material in other colours available on request | • | • | • | |
| Double guidance chevron markings help the driver position the vehicle correctly into the shelter |
• | • | • | |
| Special projections of 750 or 900 mm, depending on the required depth (up to 1,200 mm with the WSP) |
• | • | ||
| Height and/or width adjusted to accommodate larger or smaller vehicles | • | • | ||
| Special dimensions for side and/or top curtains. May be combined with the previous option |
• | • | • | |
| Custom bottom pads for sealing against draughts. Available in various sizes |
• | • | • | |
| Dock number markings on header curtains | • | • | • | |
| Rubber wind straps to prevent curtain flapping | • | • | • | |
| POWERFLEX® curtain material for extreme and changeable weather conditions, in particular very low and very high temperatures |
• | • | • | |
| Optional extra bottom curtain for ground-level models to seal against draughts |
• | • | • | |
| HD bumpers for WSP model to protect fixed sandwich side panels | • |
